PCB-01

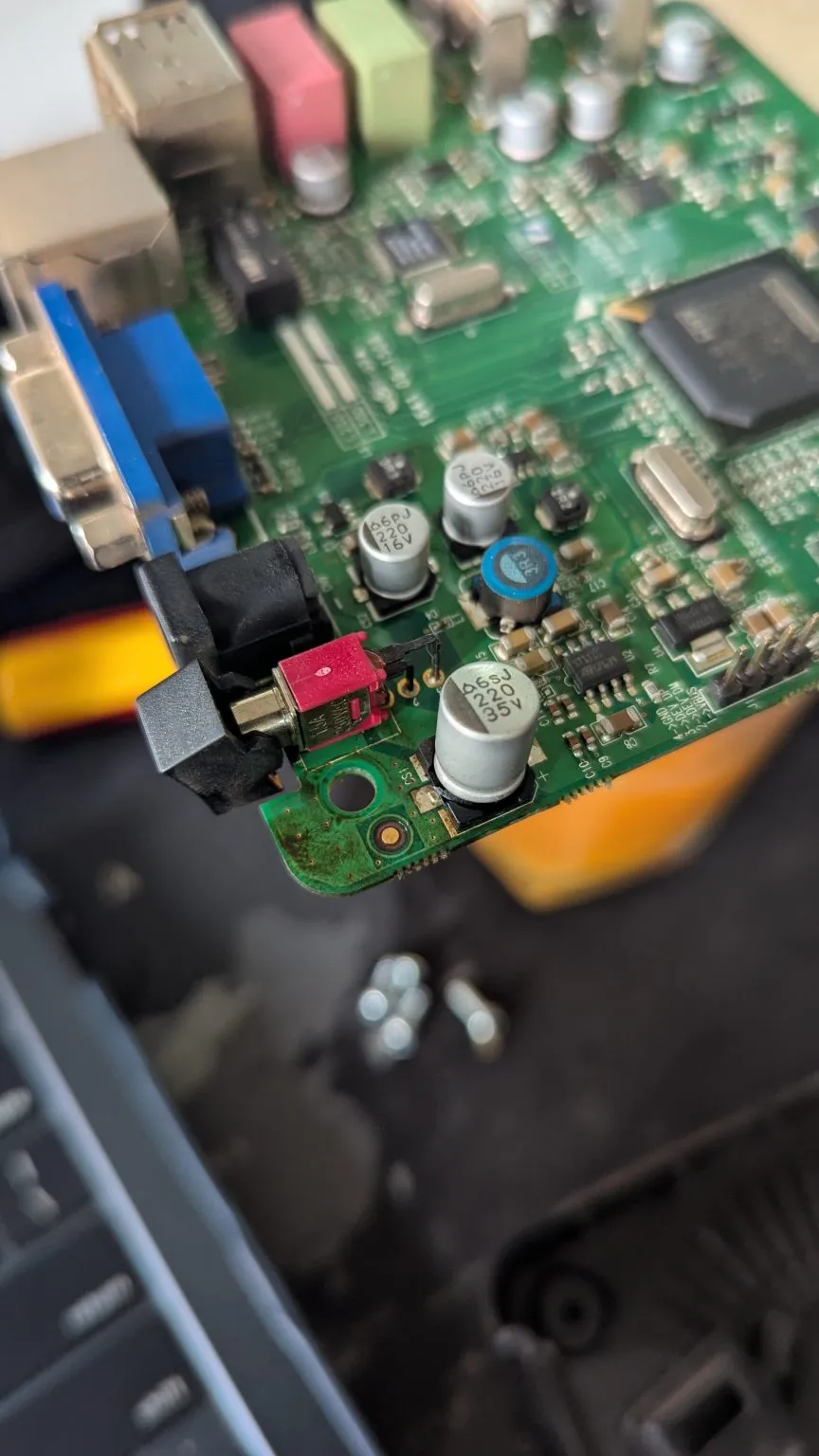

Corner of a green board
The corner of a green circuit board, photographed at an angle: connectors along one edge, a cluster of capacitors and a stained mounting hole.
- Material
- Circuit boards
- Drawn
- Status
- Observation study
- Drawn by
- Circuit Works
The board is held at an angle above a dark workspace, with loose screws resting below and a laptop keyboard at the edge of the frame. Printed values are visible on several parts; this sheet does not rely on them.
A large square chip sits towards the top right, out of focus. It is listed, not identified.
Callouts
- A blue multi-pin connector runs along the left edge.
- Cylindrical capacitors stand in a loose cluster; their printed values are not relied on here.
- A small red switch sits beside a black socket at the corner.
- Brown residue surrounds the corner mounting hole.
Revisions
Rev A · · First look
Listed the edge connector and the capacitor cluster.
Rev B · · Corner detail
Added the residue around the mounting hole. Its cause is not stated; the photograph does not show it.
