MEC-01

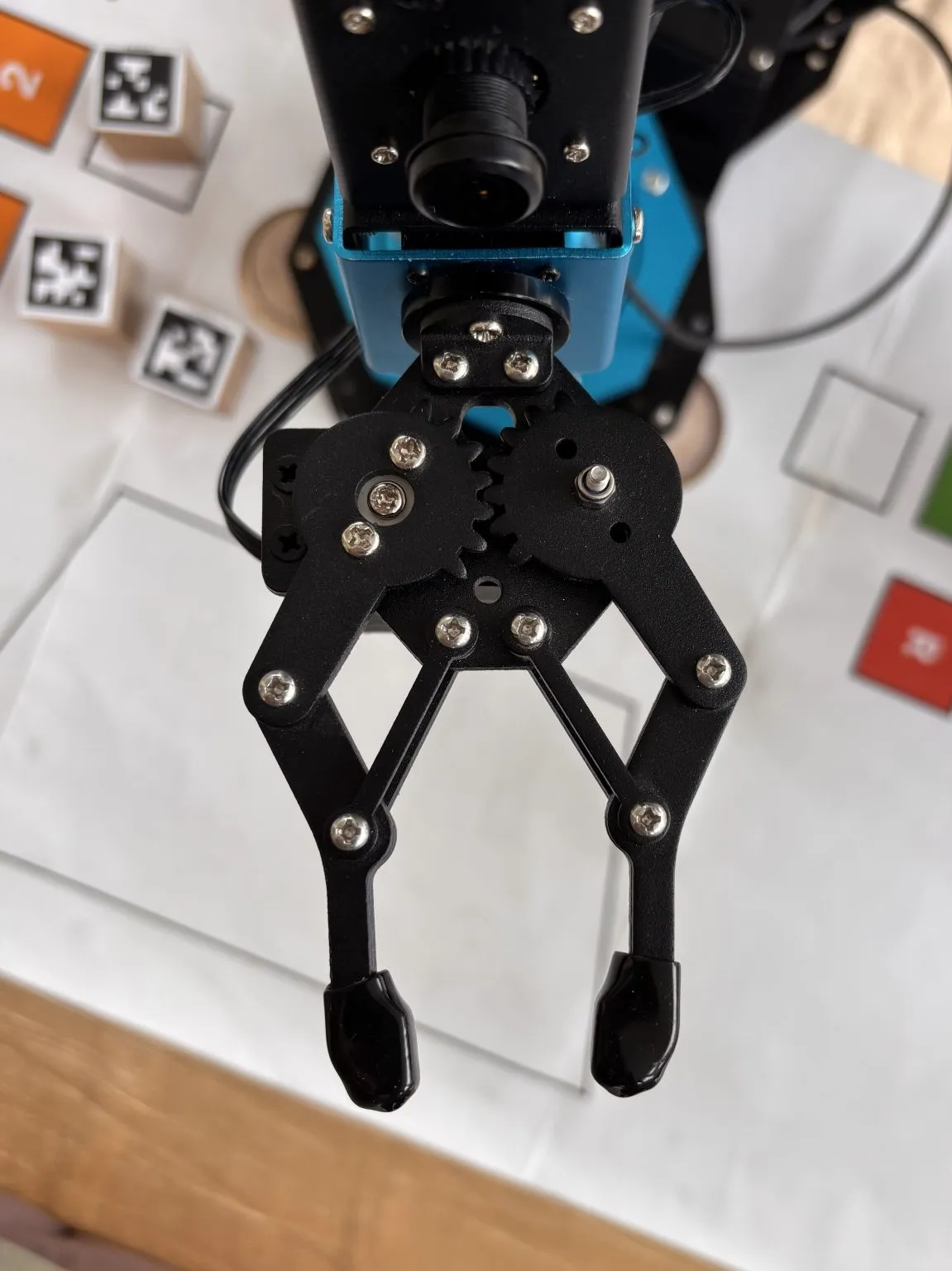

Gripper below a camera
A two-finger gripper hangs below a small camera on a blue frame. The sheet notes its gears, linkages and soft fingertips.
- Material
- Mechanisms
- Drawn
- Status
- Observation study
- Drawn by
- Circuit Works
Seen from above, the gripper hangs over a white mat scattered with small wooden cubes printed with black-and-white square markers. The photograph is sharp at the jaws and softer towards the background, so this sheet stays with the hardware in focus.
A black cable loops from the gripper back towards the frame. Where it connects is out of view, and the sheet does not guess.
Callouts
- Two toothed gears mesh at the top, so both jaws appear to move together.
- Linkage arms carry each finger; a screw marks every pivot.
- Soft black caps cover both fingertips.
- A small camera sits on the blue frame, looking down past the jaws.
Revisions
Rev A · · First look
Recorded the gears and the two fingers. The drive is left unstated: it is not visible in the photograph.
Rev B · · Linkages
Added the linkage arms and pivots after a closer look at the screw heads. The marker cubes are noted as background, not part of the build.
