Print head over an empty plate

A desktop 3D printer's print head parked over an empty build plate, with its fans, rails and levelling knobs noted.

Material
Machines
Drawn
Status
Observation study
Drawn by
Circuit Works

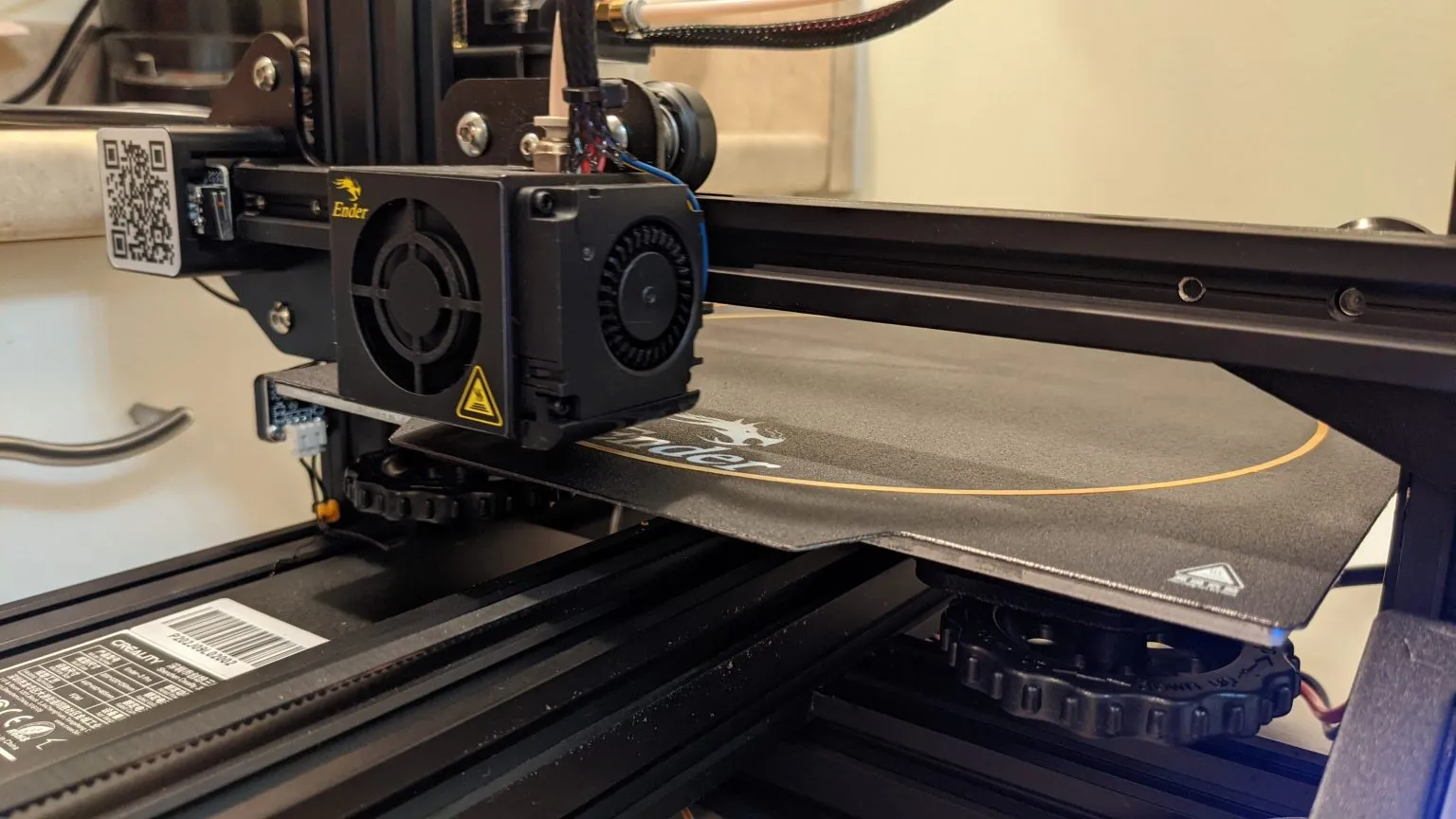

The print head and empty build plate of a desktop 3D printer.

The printer is photographed at plate level with nothing on the plate.

Manufacturer labels are visible on the machine. This study is about the arrangement of parts, not the brand, and implies no endorsement.

Callouts

  1. The print head carries a round fan grille on its face and a smaller blower beside it.
  2. A warning label sits on the lower corner of the print head.
  3. Black aluminium rails form the frame and the gantry.
  4. A printed circular outline marks the plate.
  5. Large knurled knobs sit under the corners of the plate.

Revisions

  1. Rev A · · First look

    Recorded the print head, fans and plate.

  2. Rev B · · Frame

    Added the rails and knobs. Print quality is not assessed; nothing is being printed in the photograph.
